SCPV - TEMPEST Pluggable Filter -16A4S -EU
Silicon CPV’s 4 socket, TEMPEST pluggable filter has been designed for use within stringent TEMPEST environments and applications, where protection compliant to SDIP-29 and equipment hardening to SDIP-27 is required.
The product uses ultra-reliable self-healing capacitors, in all units to deliver optimum performance across the full frequency range and under all loading conditions. The SCPV filter has been designed for use within unprotected power environments to ensure deployment and electrical installation is as quick and simple as possible.
The product has been designed to support current ratings of 16 Amps under single phase operating voltage conditions.
Description
TEMPEST EMI SP&N filter providing performance to SDIP-27 B/C
Insertion loss of 60dB from 100kHz to 1GHz

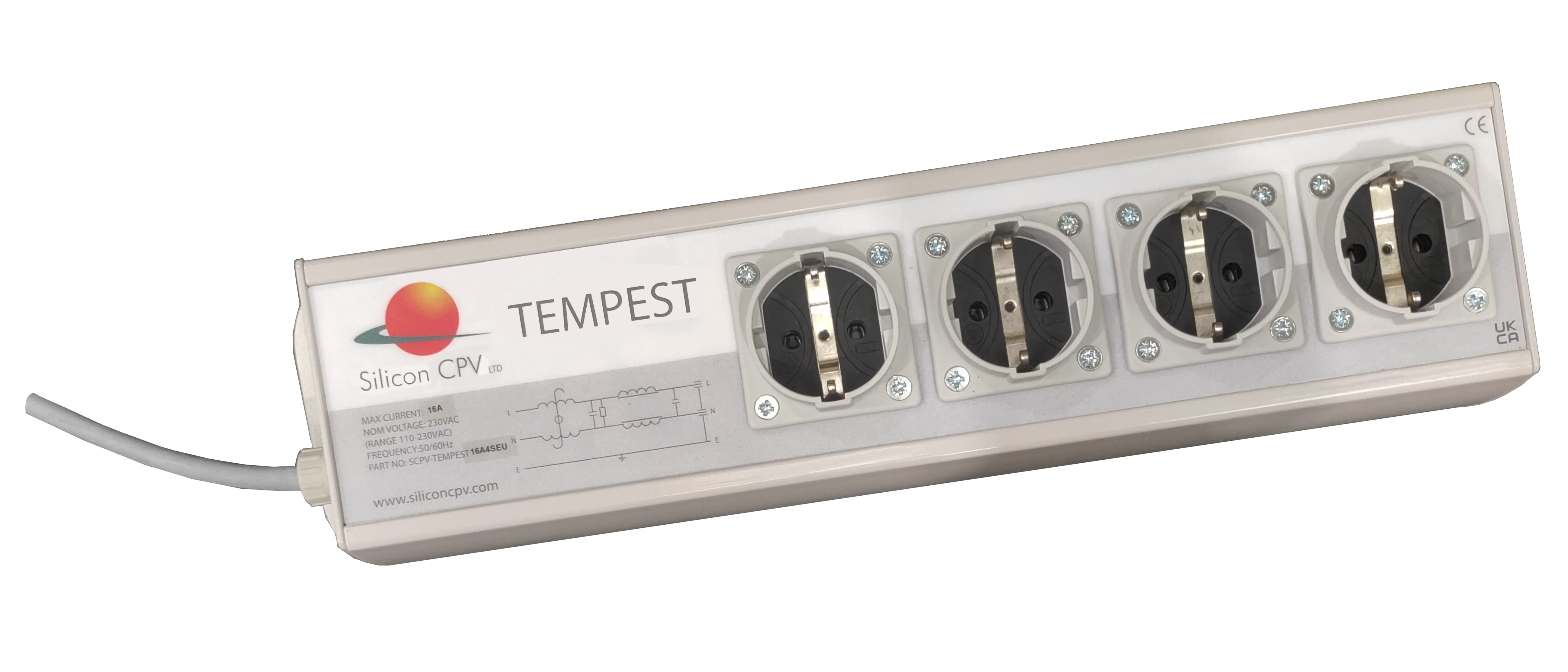

16A Type F plug input & 4 socket outlets
Designed to IT equipment safety standard IEC 62368-1:2023
Fully 360⁰ screened input cable to maintain red/black separation to filter
Low Smoke Zero Halogen (LSZH) rated cabling for use in sensitive areas
Self-healing metallised plastic film capacitors
High common & differential mode insertion loss
Improved low frequency performance
Powder coated aluminium enclosure
16A designs of filter are downline tolerable to a personnel protection RCCD
UKCA - CE compliant – Input voltage range (90-275VAC)
Simple mechanical and electrical installation
Filters comply with basic requirements of the EMC directive 2014/30/EU
Ratings and Characteristics
| Rated Voltage | 230V AC 50/60Hz | Storage Temp Range | -25°C to 85°C | |
| Test Voltage (line - earth) | 2250V DC | Operating Temp Range | -20°C to 50°C | |
| Test Voltage (line - Line) | 1250V DC | Insertion Loss (50Ω Asymmetric) | 60dB, 100KHz - 1GHz | |
| Rated Current @50°C | 16A | Discharge Time | Less than 1s to below 34V | |
| Earth Leakage Current | Less than 3.0mA | Enclosure | Extruded Aluminium | |
| Max Temp Rise @Full Load | < 35°C | Finish | Powder coated |
Dimensional Data
Performance Characteristics and Insertion Loss Curves
Part No and Ordering Information
Part No: SCPVTEMPEST16A4S-EU
CP&F Part No: SCPVTEMPEST16A4S-EU
Short Product Description:
4 x Type F Sockets, Maximum16A Single Phase 230V Pluggable Tempest Filter
SCPV - TEMPEST -16 Amps 4 Socket EU PDF
